Evo X FIGHTEX Dual Adjust Coilovers

Adjustable bottom brackets. The dual adjustable type allows quick and easy adjustment of the total length.

The total length of the damper can be tuned via the bottom bracket. The car ride height can be adjusted without touching the spring pre-load. Helping to find the delicate balance of traction and grip, through the various independent parameters of ride height, spring pre load and rebound stroke lengths.

CZ4A LANCER EVO10

TypeDA

*Click the damper images below to see larger pictures.

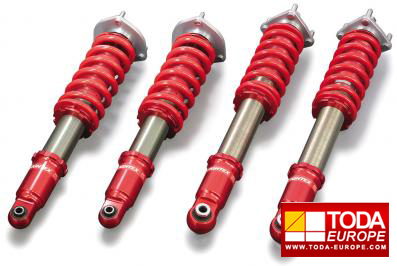

CZ4A FIGHTEX Damper KIT
Type

Kit contents		Damper + Spring + Pillow ball upper mount
Model		CZ4A (LANCER EVO10)
Part No.		51520-CZ4-000	51530-CZ4-000
Price (KIT)		£2400
Price (damper only)
Price (damper + spring)
Supplied spring rate [kgf/mm-mm]	Front	12K-200	14K-200
	Rear	10K-200	12K-200
Adjustable height range to standard height	Front	approx. +20mm ~ -35mm
	Rear	approx. +20mm ~ -30mm
Design		F: Up side down design / R: Standard design

Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot (rear), car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
