DC5 Toda Racing FIGHTEX Dual Adjust Coilovers

£3,378.00

SKU: SKU-17234 Categories: ,

Description

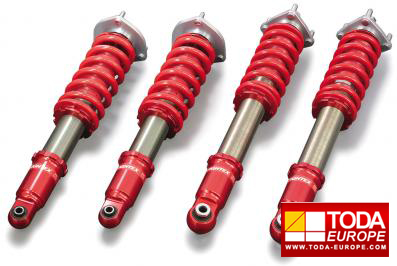

DC5 Toda Racing FIGHTEX Dual Adjust Coilovers

Adjustable bottom brackets. The dual adjustable type allows quick and easy adjustment of the total length.

The total length of the damper can be tuned via the bottom bracket. The car ride height can be adjusted without touching the spring pre-load. Helping to find the delicate balance of traction and grip, through the various independent parameters of ride height, spring pre load and rebound stroke lengths.

DC5 INTEGRA TypeR
well
TypeDA
g-cro
The product of above image is optional specification model that Green Chromate surface treatment is used on the outer cases and the front bottom brackets. Has at least twice as much resistance to corrosion as that of other companies plating techniques.
This optional specification is available for other models of FIGHTEX dampers.
→Check Overhaul and /or specification change price list.
*Click the damper images below to see larger pictures.
DC5 FIGHTEX Damper KIT
TypeTypeDATypeDA-G
TypeEX
ep3-daep3-ex
Kit contentsDamper + Spring + Pillow ball upper Mount
ModelDC5 (INTEGRA TypeR)
Part No.51520-DC5-00051530-DC5-00051540-DC5-000
Price (KIT)£2815
£2815(Green Chromate spec)
OptionpiloPillow-ball bush (R ¥10,000)
Supplied spring rate
[kgf/mm-mm]
Front8K-16016K-1608K-160
Rear12K-140(ID70mm)16K-140(ID70mm)12K-140(ID70mm)
AccessoriesFront helper springsFront helper springs
DesignF: Upside down design / R: Standard design
RemarksThe normal upper mount is unavailable.
*Rear springs ID:70.
The rear damper has no adjustable bracket for ride height adjustment.
The normal upper mount is unavailable.
*Rear springs ID:70.
Spring rate can be changed at the time of order (A price is the same).
ID60 – Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
ID70 – Spring rate kgf/mm (6, 8, 10, 12, 14, 16)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)
Damper KIT contents: Damper, main spring, front helper spring (on certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot (rear), car height adjustment wrench, damping force adjustment wrench, instruction manual.

For info on DC5 Toda Racing FIGHTEX Dual Adjust Coilovers please go here

For info on our full range of goods and services please go here
